APPLICATION
PRODUCT FEATURE

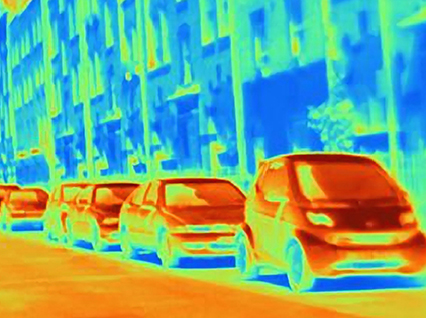

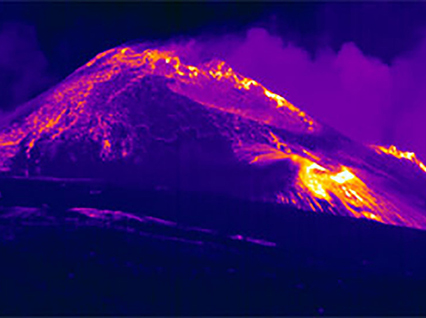

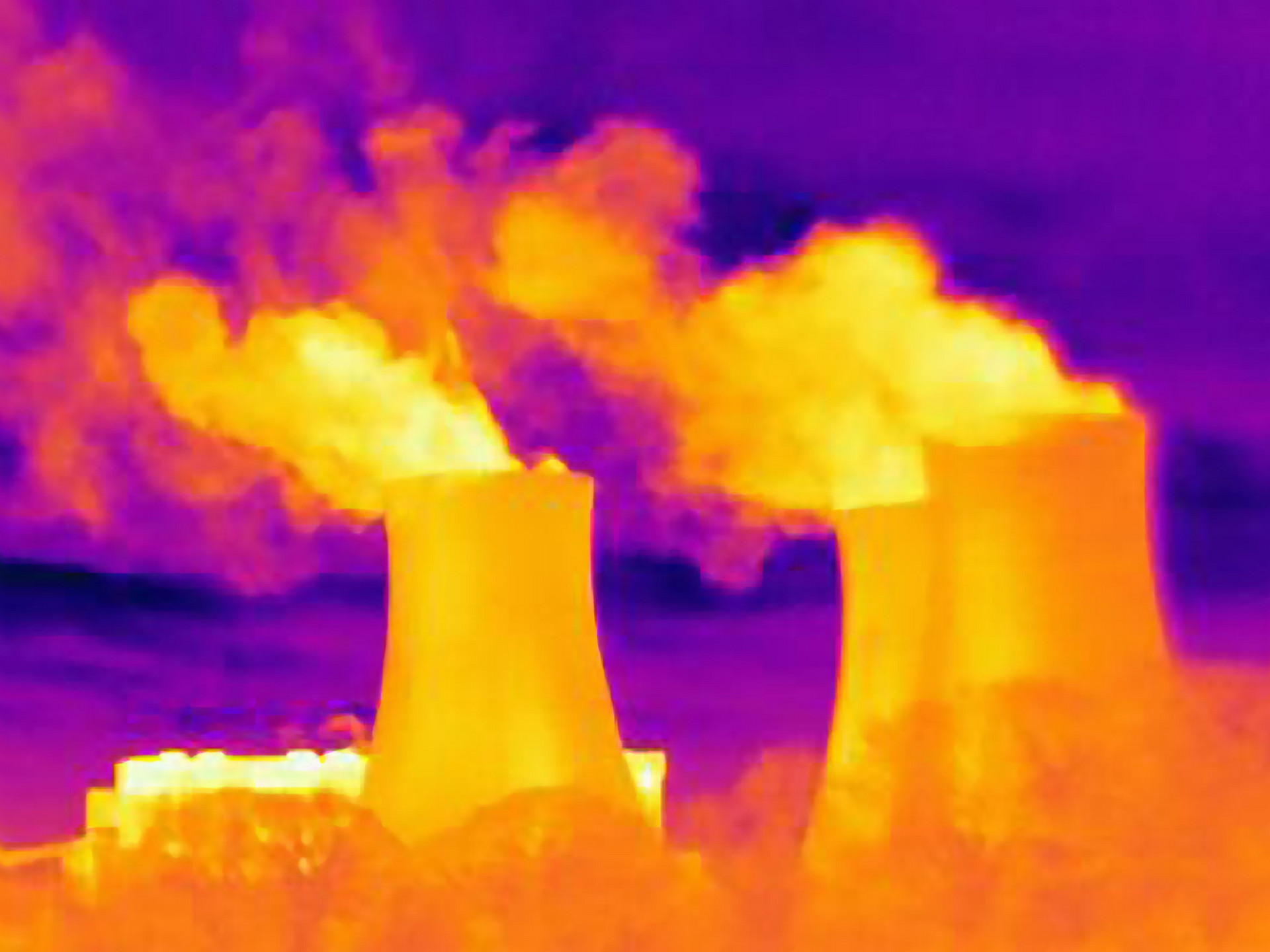

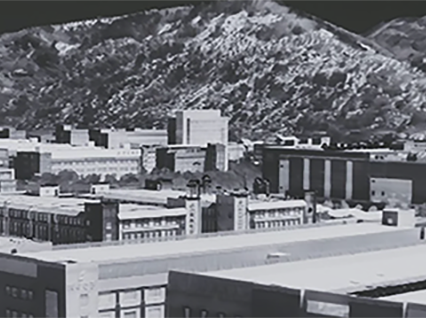

ldeal for surveillance, fire prevention, traffic monitoring, public sites(seaports, airports, industrial plants) etc.
Positive identification
Reliable long-range detection
Real-time monitoring in all day and all conditions
LENS TYPES

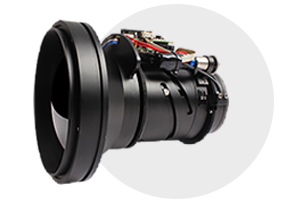

Continuous Zoom Lenses" alt="Continuous Zoom Lenses" class="nlazy">

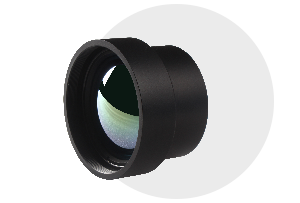

Athermalized Lenses" alt="Athermalized Lenses" class="nlazy">

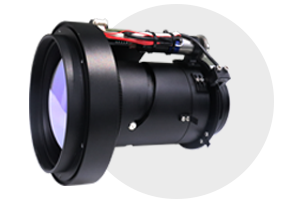

Dual-fov Lenses

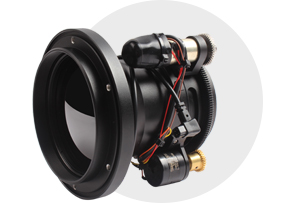

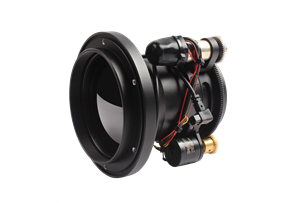

Motorized Lenses" alt="Motorized Lenses" class="nlazy">
PRODUCT LIST
Download Full Catalog| No. | f(mm) | F# | Sensor | Transmission @8~12μm | FOV(°) | Focus | M.B.F.L (mm) | Mount | Dimensions (mm) | Sealing | Front Lens Coating |
| QVGA 12μm Series | |||||||||||
| 1 | 9 | 1 | 320*240 12μm | ≥93.2% | 24.0(H)×18.1(V) | Athermalized | 4.08 | M18×0.5 | L11.75;Ф20 | IP 67 | AR |
| 2 | 13.7 | 1 | 320*240 12μm | ≥87.7% | 16.0(H)×12.0(V) | Athermalized | 7.2 | M24×0.5 | L19.5;Ф31 | IP 67 | HD |
| 3 | 25 | 1 | 384*288 12μm | ≥90.2% | 10.5(H)×7.9(V) | Athermalized | 8.5 | M28×0.75 | L32.7;Ф32.1 | IP 67 | HD |
| VGA 12μm Series | |||||||||||
| 4 | 9.1 | 1 | 640*480 12μm | ≥90.0% | 50.0(H)×37.0(V) | Athermalized | 5.13 | M24×0.5 | L27.5;Ф35 | IP 67 | AR |
| 5 | 13.5 | 1 | 640*480 12μm | ≥90.4% | 32.0(H)×24.2(V) | Athermalized | 7.5 | M25×0.5 | L14.05;Ф26 | IP 54 | AR |
| 6 | 19 | 1 | 640*480 12μm | ≥87.2% | 22.9(H)×17.3(V) | Athermalized | 9 | M25×0.5 | L20;Ф28 | IP 67 | HD |
| 7 | 25 | 1 | 640*480 12μm | ≥87.2% | 17.4(H)×13.1(V) | Athermalized | 9 | M25×0.5 | L26;Ф35 | IP 67 | HD |
| 8 | 35 | 1 | 640*480 12μm | ≥86.5% | 12.5(H)×9.4(V) | Athermalized | 17 | M34×0.5 | L32.5;Ф45 | IP 67 | HD |
| SXGA 12μm Series | |||||||||||
| 9 | 19 | 1 | 1280*1024 12μm | ≥83.2% | 46.4(H)×37.1(V) | Athermalized | 9 | M34×0.5 | L42;Ф59.9 | IP 67 | DLC |
| 10 | 25 | 1 | 1280*1024 12μm | ≥83.2% | 35.3(H)×28.2(V) | Athermalized | 9 | M34×0.5 | L52;Ф41 | IP67F.L.O | DLC |
| 11 | 35 | 1 | 1280*1024 12μm | ≥87.6% | 25.1(H)×20.1(V) | Athermalized | 9 | M34×0.5 | L42.5;Ф41.1 | IP 67 | HD |
| 12 | 55 | 1 | 1280*1024 12μm | ≥87.6% | 15.8(H)×12.7(V) | Athermalized | 9 | M34×0.5 | L57;Ф60.4 | IP 67 | HD |
| VGA 17μm Series | |||||||||||
| 13 | f25-f225 | 0.95~1.5 | 640*480 17μm | ≥66.7% | f25=25.3(H)x20.1(V) f225=2.8(H)x2.2(V) | Continuous Zoom | 12 | flange | L270.9;Ф200 | IP 67F.L.O | DLC |
We design and manufacture a wide range of infrared lenses for use in security, thermography, automotive night vision, consumer application. Over the years We have always adhered to the “customer first” business purposes. Committed to providing high quality customized products. Please contact us if you have any needs in IR solutions, we will be your best partner.
